[ Click on Images to Enlarge ]

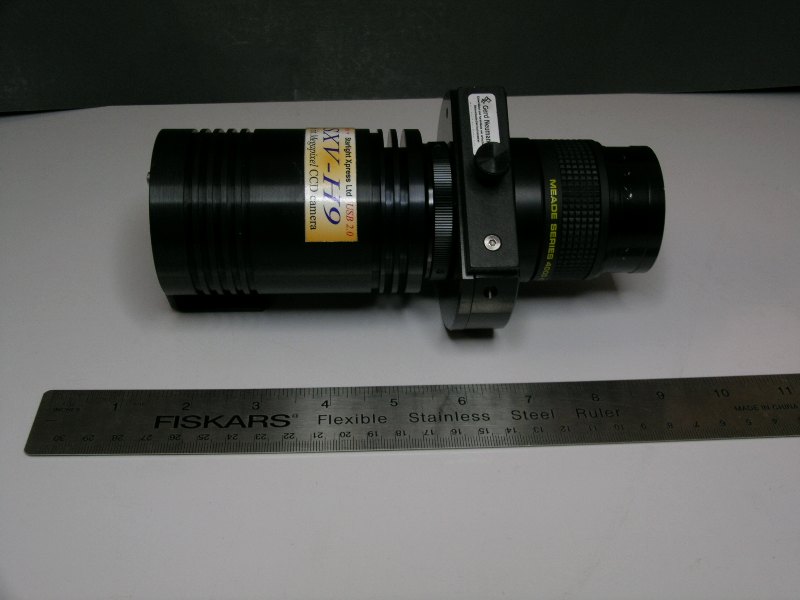

Complete Optic Train:  Camera - Low
Profile Adapter - Filter Drawer - adapter
- Focal Reducer - 2" male adapter.
First light with the new camera and my
first Globular Cluster.  Used 2x2
binning.  Click on the image to see
detail.
                              TELESCOPE / CCD PERFORMANCE

Telescope            F- Ratio     Flocal Length       Image Scale          Field of View

Mewlon 250             f/12                3000mm            0.44 arcsec/pix        7.6 x 10.2 arcmin
Mewlon 250             f/9.2               2400mm            0.55 arcsec/pic        9.5 x 12.7 arcmin

LX200 - 10"             f/6.3               1600mm             0.82 arcsec/pix       14.3 X 19.1 arcmin
LX200 - 10"             f/4                  1008mm             1.31 arcsec/pix       22.7 X 30.3 arcmin

SV80L - 80mm        f/7.5                 600mm             2.2 arcsec/pix          38.1 X 51 arcmin
SV80L - 80mm        f/6                    480mm             2.75 arcsec/pix        47.6 X 63.7 arcmin

AT1010- 80mm       f/6.0                 480mm             2.75 arcsec/pix        47.6 X 63.8 arcmin
AT1010 - 80mm      f/3.8                                          4.36 arcsec/pix       75.6 X 101.2 arcmin
The SXV-H9 camera specification:

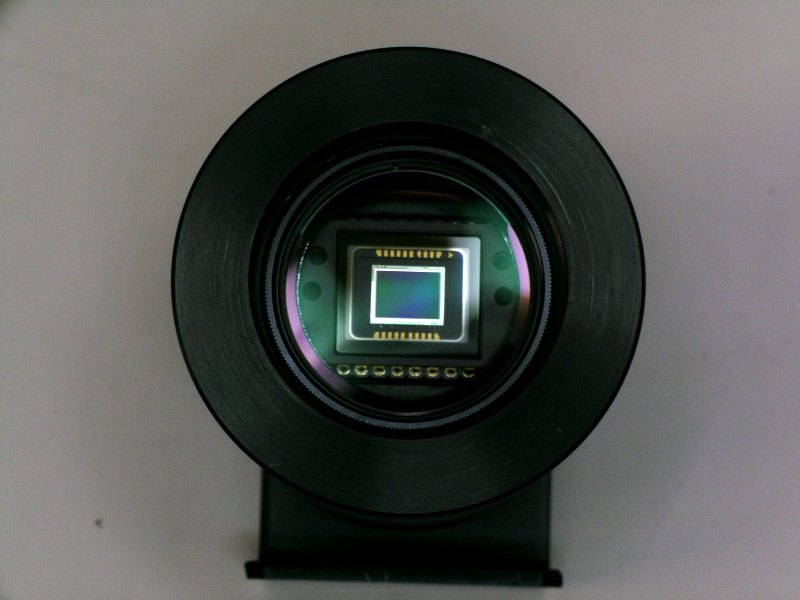

  • CCD type: Sony ICX285AL Exview HAD CCD with ultra low dark current, extended IR response and vertical anti-
    blooming.
  • CCD quality: Grade 1 or better - No bad columns, no dead pixels, no more than 6 'hot' pixels (saturated in <10
    seconds).
  • CCD Full resolution Pixel data: Pixel size: 6.45uM x 6.45uM, Image format: 1392 x 1040 pixels
  • CCD Image area: 8.98mm (Horizontal) x 6.7mm (Vertical).
  • Spectral Response: QE max at 540nM (~65%), 50% roll-off at 400nM and 750nM.
  • Readout Noise: Less than 12 electrons RMS - typically ONLY 7 electrons!
  • Full-well capacity: Greater than 27,000 e- (unbinned)
  • Anti-blooming: Overload margin greater than 800x.
  • Dark current: Dark frame saturation time greater than 100 hours. Less than 0.02 electrons/second @ + 10C ambient.
  • Data format: 16 bits.
  • System gain:  0.45 electrons per ADU
  • Computer Interface: Built-in USB 2.0 compatible interface. Also works with USB 1.1.
  • Image download time: Typically 3.5 - 4 seconds full resolution using USB 2.0, approximately 7 seconds with USB 1.1.
  • Power requirements: 115VAC / 240VAC @ 12VA, or 12VDC @ 750mA max.
  • Cooling system: Regulated constant current cooling supply with single stage thermoelectric cooler to give a CCD
    temperature of approximately -30C below ambient.
  • Size: 63 x 95mm black anodised aluminium barrel with 42mm 'T2' thread at the CCD window end & input/output plugs at
    rear.
  • Weight: approx. 350g.

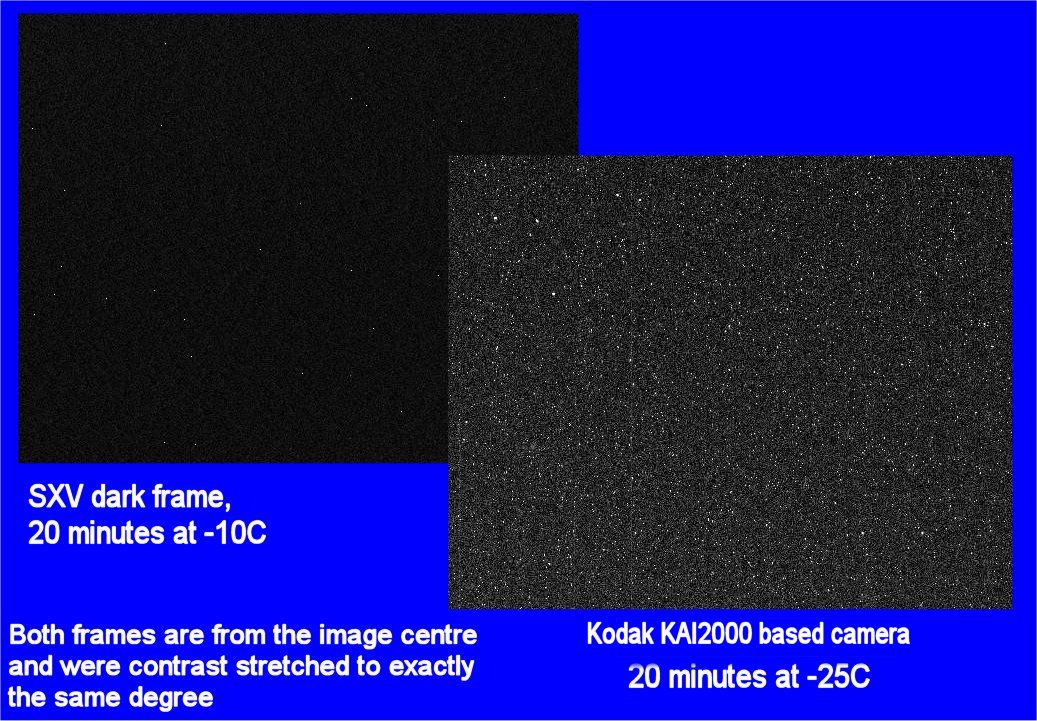

Dark Frame Comparison

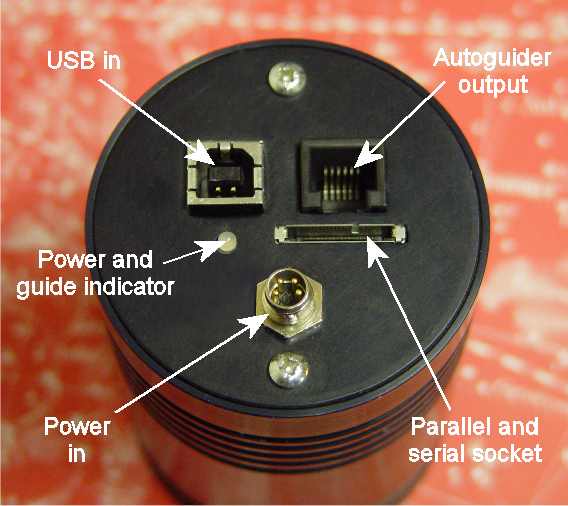

The cable connections for this camera
are extremely convenient.
[Equipment Page]
[Home]
www.Stellar-Views.com
Amateur Astronomy
[ Back ]
[ Home ]
SXV-H9 CCD Imager
I received a Starlight Xpress SXV-H9 camera in June 2005.  The first night out seeing was poor, but I took my first image of the
Globular Cluster, M53.
